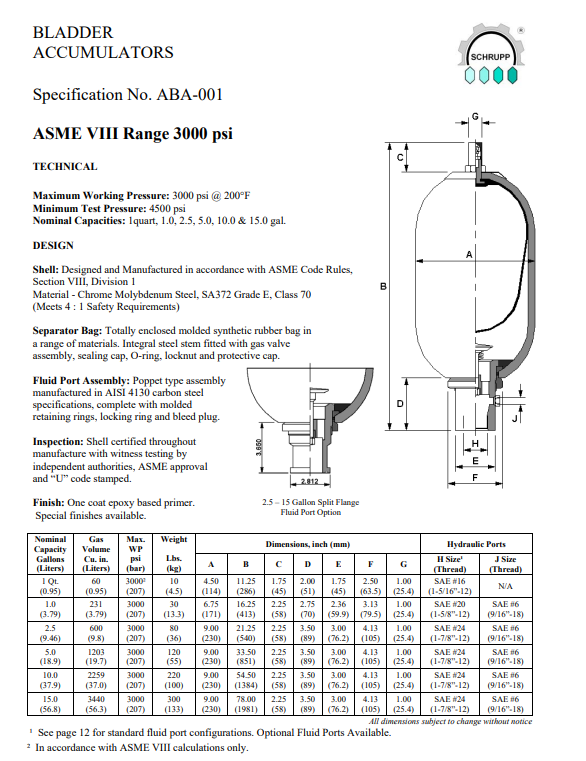

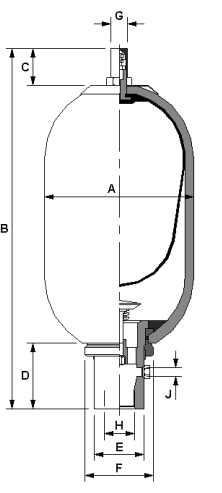

ABA-001 Series 1 Quart Accumulator

TECHNICAL Maximum Working Pressure: 3000 psi @ 200°F Minimum Test Pressure: 4500 psi

Nominal Capacities: 1quart, 1.0, 2.5, 5.0, 10.0 & 15.0 gal.

DESIGN Shell: Designed and Manufactured in accordance with ASME Code Rules, Section VIII, Division 1 Material - Chrome Molybdenum Steel, SA372 Grade E, Class 70 (Meets 4 : 1 Safety Requirements)

Separator Bag: Totally enclosed molded synthetic rubber bag in a range of materials. Integral steel stem fitted with gas valve assembly, sealing cap, O-ring, locknut and protective cap.

 Fluid Port Assembly: Poppet type assembly manufactured in AISI 4130 carbon steel specifications, complete with molded retaining rings, locking ring and bleed plug. Inspection: Shell certified throughout manufacture with witness testing by independent authorities, ASME approval and “U” code stamped.

 Finish: One coat epoxy based primer. Special finishes available
