TECHNICAL
Maximum Working Pressure: 3000 psi @ 200°F
Minimum Test Pressure: 4500 psi

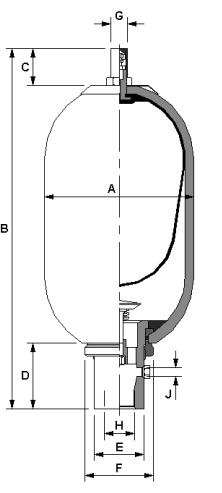

Nominal Capacities: 1quart, 1.0, 2.5, 5.0, 10.0 & 15.0 gal.

DESIGN
Shell: Designed and Manufactured in accordance with ASME Code Rules,
Section VIII, Division 1
Material - Chrome Molybdenum Steel, SA372 Grade E, Class 70
(Meets 4 : 1 Safety Requirements)
Separator Bag: Totally enclosed molded synthetic rubber bag in
a range of materials. Integral steel stem fitted with gas valve
assembly, sealing cap, O-ring, locknut and protective cap.
Fluid Port Assembly: Poppet type assembly
manufactured in AISI 4130 carbon steel
specifications, complete with molded
retaining rings, locking ring and bleed plug.
Inspection: Shell certified throughout
manufacture with witness testing by
independent authorities, ASME approval
and “U” code stamped.

Finish: One coat epoxy based primer.
Special finishes available

Mounting Brackets for Accumulators
Designed for specific use on Accumulator installation, both
Clamps & Bases are supplied complete with Rubber
Support to ensure rigid mounting.

Item
Gasket set
Gauge 0-25 Bar
Gauge 0-2 50 Bar
2 Direct gauge connection 1/4"- female Ml 6x2
Adaptor for bottle connection W2 5.4x 1 /8"
Adaptor for bottle connection W2 l .7xl /14"
Adaptor for Shrader valve (5/8" - 18 UNF / 8Vl)
Charger
6 mm A/F Allen wrench
Adaptor M28xl.5-Ml6x2
AdaptorM28xl.5-G 3/4"
Adaptor M28xl.5- S/8"-18 UNF
Adaptor M28xl.5- 7/8"-14 UNF
2.5 m flexible hose (400 bar max working pressure)
GPMcode
GUAKITAZ
063.025R
063250R
20140000
25W25414
25W21714
25AZ588V
CARKITAZ
BRUCH6
25AZ2816
25AZ2834
25AZ2858
25AZ2878
RD63814038140L2500

Mounting Brackets for Accumulators
Designed for specific use on Accumulator installation, both
Clamps & Bases are supplied complete with Rubber
Support to ensure rigid mounting.

15 Gallon Low Temp Buna-N Bladder Repair Kit; includes bladder, seal kit, and valve stem

15 Gallon Viton Bladder Repair Kit; includes bladder, seal kit, and valve stem

15 Gallon EPR Bladder Repair Kit; includes bladder, seal kit, and valve stem

15 Gallon Butyl Bladder Repair Kit; includes bladder, seal kit, and valve stem

15 Gallon Buna-N Bladder Repair Kit; includes bladder, seal kit, and valve stem

10 Gallon Low Temp Buna-N Bladder Repair Kit; includes bladder, seal kit, and valve stem

10 Gallon Viton Bladder Repair Kit; includes bladder, seal kit, and valve stem

10 Gallon EPR Bladder Repair Kit; includes bladder, seal kit, and valve stem

10 Gallon Butyl Bladder Repair Kit; includes bladder, seal kit, and valve stem

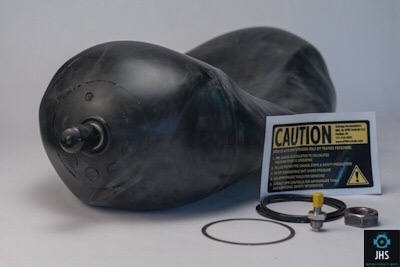

10 Gallon Buna-N Bladder Repair Kit; includes bladder, seal kit, and valve stem

5 Gallon Low Temp Buna-N Bladder Repair Kit; includes bladder, seal kit, and valve stem

5 Gallon Viton Bladder Repair Kit; includes bladder, seal kit, and valve stem

5 Gallon EPR Bladder Repair Kit; includes bladder, seal kit, and valve stem

5 Gallon Butyl Bladder Repair Kit; includes bladder, seal kit, and valve stem

5 Gallon Buna-N Bladder Repair Kit; includes bladder, seal kit, and valve stem

2.5 Gallon Low Temp Buna-N Bladder Repair Kit; includes bladder, seal kit, and valve stem
