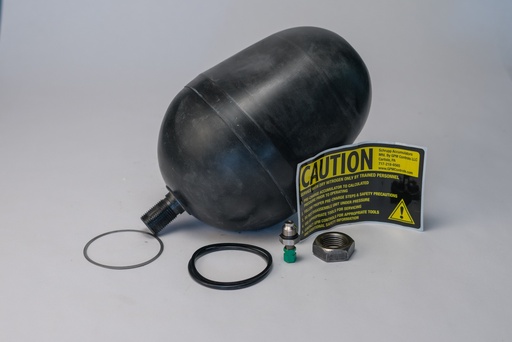

10 Gallon Viton Bladder Repair Kit; includes bladder, seal kit, and valve stem

10 Gallon Buna-N Bladder Repair Kit; includes bladder, seal kit, and valve stem

10 Gallon Low Temp Buna-N Bladder Repair Kit; includes bladder, seal kit, and valve stem

10 Gallon EPR Bladder Repair Kit; includes bladder, seal kit, and valve stem

10 Gallon Butyl Bladder Repair Kit; includes bladder, seal kit, and valve stem

1 Quart Viton Bladder Repair Kit; includes bladder, seal kit, and valve stem

1 Quart Buna-N Bladder Repair Kit; includes bladder, seal kit, and valve stem

1 Quart Low Temp Buna-N Bladder Repair Kit; includes bladder, seal kit, and valve stem

1 Quart EPR Bladder Repair Kit; includes bladder, seal kit, and valve stem

1 Quart Butyl Bladder Repair Kit; includes bladder, seal kit, and valve stem

TECHNICAL
Maximum Working Pressure: 3000 psi @ 200°F
Minimum Test Pressure: 4500 psi
Nominal Capacities: 1quart, 1.0, 2.5, 5.0, 10.0 & 15.0 gal.

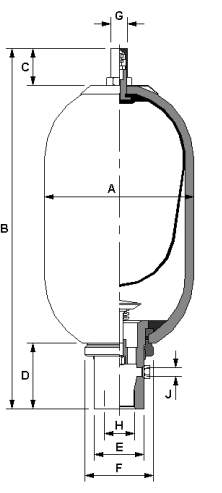

DESIGN
Shell: Designed and Manufactured in accordance with ASME Code Rules,
Section VIII, Division 1
Material - Chrome Molybdenum Steel, SA372 Grade E, Class 70
(Meets 4 : 1 Safety Requirements)
Separator Bag: Totally enclosed molded synthetic rubber bag in
a range of materials. Integral steel stem fitted with gas valve
assembly, sealing cap, O-ring, locknut and protective cap.
Fluid Port Assembly: Poppet type assembly
manufactured in AISI 4130 carbon steel
specifications, complete with molded
retaining rings, locking ring and bleed plug.
Inspection: Shell certified throughout
manufacture with witness testing by
independent authorities, ASME approval
and “U” code stamped.

Finish: One coat epoxy based primer.
Special finishes available
